Sewing Machine Feed Dogs: How They Work & Common Issues

By Sewing Mechanic Editorial Desk · September 6, 2026

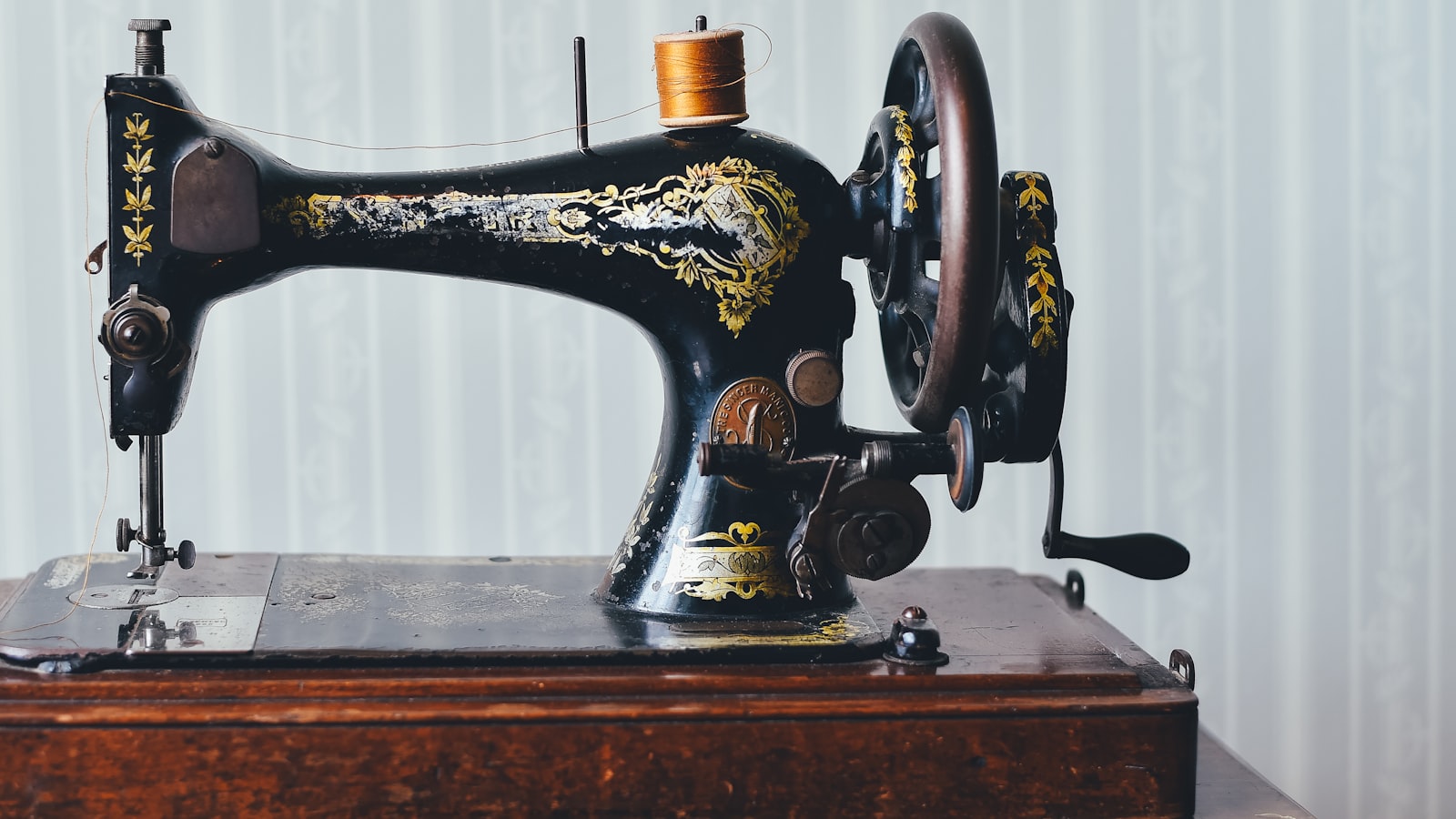

Vintage black sewing machine with gold floral decals rests on a wooden base

Disclosure: Some links below are affiliate links. If you buy through them we may earn a small commission at no extra cost to you. This never affects our recommendations.

Key Takeaways

Feed dogs are the toothed metal bars under your presser foot that grip and move fabric—but their motion isn’t controlled by the foot pedal alone. The feed dog lever and hook timing determine when they engage, and misalignment here is the first place to check when stitches skip or fabric feeds unevenly. Five hidden mechanics break stitches: misaligned timing, worn teeth, incorrect clearance, broken lever linkage, and fabric thickness mismatch. Listen for skipping or watch for uneven feed—these are the symptoms that point to root causes, not just symptoms to ignore.

Never adjust feed dogs manually—their timing is set in the machine’s internal gears, and tweaking them risks throwing off stitch formation. Check your manual for model-specific adjustments, but know that most domestic machines require a service technician to reset timing properly. Thick fabrics? Disable feed dogs (if your machine allows) and use the handwheel to pull fabric through—this bypasses the feed mechanism entirely. And here’s the catch: feed dog issues often mimic needle or tension problems. Always check the bobbin case tension first—loose or tight tension will mimic every feed dog fault, and fixing it is far simpler than recalibrating gears.

The 5 Mechanics That Move Fabric (And How They Fail)

Feed dogs don’t just move fabric—they time it. Their motion is controlled by five distinct mechanics, each with its own failure modes. When one breaks, the symptom isn’t just “fabric isn’t moving”—it’s a stitch defect, a jam, or a drag that ruins the work. Here’s how they work, and what goes wrong when they don’t.

1. Feed Dog Lever Arm: The Pivot That Decides When They Engage

The lever arm is the pivot that raises and lowers the feed dogs when you press the foot pedal. It’s controlled by the feed mechanism dial (often labeled “feed” or “walking foot” on vintage machines). If it sticks, the dogs stay down, and fabric jams under the presser foot. If it’s too loose, the dogs don’t grip at all.

How to check it:

Lift the presser foot by hand and watch the dogs. If they don’t rise smoothly or stick mid-motion, the pivot needs cleaning or lubrication.
No manual? The lever arm is usually visible from the front of the machine—look for the metal bar that connects to the dogs. If it’s bent or corroded, that’s the failure.

Symptom of failure: Fabric slips backward under the needle, or the machine stalls with the dogs locked down.

2. Hook Timing: The Moment Dogs Must Release Fabric

The feed dogs don’t just move fabric—they must release it at the exact moment the needle pulls the thread through. If the timing is off, the fabric gets yanked backward, creating loops on the underside or skipped stitches. This isn’t just about the dogs; it’s about their relationship with the hook.

How timing works:

The dogs grip fabric as the needle descends.
They release just before the hook pulls the thread upward.
If the dogs release too early, the hook grabs loose fabric and forms a loop.
If they release too late, the needle pulls thread from the wrong place, skipping stitches.

How to diagnose:

Sew a straight seam on scrap fabric. If the underside has loops, the dogs are releasing too early.
If the top thread loops on the fabric surface, the dogs are releasing too late.
No manual? The hook timing is set by the machine’s internal gears—adjusting it requires disassembly, which is a service-level task. If you’re seeing loops or skips, the issue is almost always timing, not the dogs themselves.

Symptom of failure: Loops on the underside, skipped stitches, or fabric bunching under the presser foot.

3. Tooth Engagement: When Worn Teeth Slip or Tear

Feed dog teeth aren’t just for gripping—their shape determines how they handle different fabrics. Worn or bent teeth slip on knits (causing fabric to shift mid-stitch) while sharp teeth tear wovens (creating frayed edges).

How to check tooth condition:

Run a fingernail across the teeth. If it catches on a groove instead of riding over the ridges, the tread is worn past useful.
Look for uneven wear—a sign the dogs are misaligned or the fabric is being pulled at an angle.

Fabric-specific failures:

Fabric Type	Problem	Symptom
Knits	Worn teeth slip	Fabric shifts mid-stitch, creating wavy seams
Wovens	Sharp teeth tear	Frayed edges, broken threads
Thick layers	Teeth can’t grip	Fabric bunches under the presser foot

Fix:

Replace the feed dogs if the teeth are worn or bent.
If the issue is alignment, the machine needs a service adjustment—this isn’t a DIY fix.

4. Clearance Gap: Too Much or Too Little Space

The space between the feed dogs and the throat plate (the metal cover under the presser foot) is critical. Too much clearance = fabric slips. Too little = the dogs drag, causing uneven stitches or jams.

How to test clearance (no manual needed):

Place a business card between the dogs and the throat plate. If it slides in easily, the gap is too wide.
If it barely fits, the clearance is too tight.
Ideal clearance: The card should slide in with slight resistance—enough to prevent fabric from slipping, but not so tight that the dogs drag.

Symptom of failure:

Fabric slips backward under the needle (too much clearance).
Dogs drag, causing uneven stitches or fabric bunching (too little clearance).

5. Presser Foot Pressure: The Balance Between Grip and Drag

The presser foot applies downward force to keep fabric flat against the dogs. Too light = the dogs don’t grip. Too heavy = the dogs drag, causing uneven stitches or fabric puckering.

How to adjust (if accessible):

Most machines have a foot pressure screw (usually under the presser foot or on the side of the machine).
Turn it clockwise to increase pressure (if the foot feels too loose).
Turn it counterclockwise to decrease pressure (if the fabric is dragging).
No screw? Swap to a lighter presser foot (e.g., a rolling foot for knits) or a heavier one (e.g., walking foot for thick layers).

Symptom of failure:

Fabric slips under the needle (too light).
Dogs drag, causing uneven stitches or fabric puckering (too heavy).

How to Diagnose Feed Dog Problems (Without a Manual)

Feed dogs don’t just fail—they fail differently. The symptom isn’t always “fabric isn’t moving.” A grinding noise could mean worn teeth. Skipped stitches might point to timing, not tension. And puckering? That’s often a clearance issue, not a needle problem. The key is mapping each symptom back to the mechanism that’s broken, not just the part that’s misbehaving.

Here’s how to diagnose feed dog issues by what the machine does, not what it’s missing.

1. Fabric Isn’t Moving (But the Machine Is Running)

Root cause: The dogs aren’t engaging at all. Three things control this:

The lever linkage (does it drop fully when you press the pedal?)
Hook timing (listen for a click at needle down—if it’s missing, the dogs release too early)
Foot pressure (lift the presser foot—if fabric slides freely, the dogs aren’t gripping)

Fix it:

Test the lever: With the machine off, press the foot pedal by hand. The dogs should rise and fall smoothly. If they stick midway, the linkage is binding.
Check timing: Sew a straight line on scrap fabric. If the fabric jerks after the needle pierces (not with it), the dogs are out of sync with the hook.
Adjust foot pressure: Most machines have a screw under the foot—turn it counterclockwise to increase pressure. Stop when the fabric stops slipping.

2. Skipped Stitches (Especially Every 5th One)

Root cause: The dogs release before the needle completes its loop. This is a timing fault, not a tension issue. The hook and dogs must coordinate: the hook pulls the bottom thread after the dogs release the fabric, or the top thread loops underneath.

Fix it:

Sew a test line: If stitches skip consistently every 5th, the dogs are releasing too early. This is a hook-timing problem, not a feed dog issue—but fixing one often fixes the other.
Listen for the click: At needle down, you should hear a faint click as the dogs disengage. If it’s missing or delayed, the timing belt or cam needs adjustment (a service manual task).
Try a longer stitch length: If skipping starts after a certain length, the feed dog lever spring may be weak. Replace it if it doesn’t snap back sharply when released.

3. Fabric Puckering (Even on Thin Material)

Root cause: Two possibilities, both mechanical:

Dogs too low: The clearance gap between the dogs and the throat plate is too tight, forcing fabric into the needle’s path.
Needle too small: A fine needle (e.g., 60/8 or 70/10) can’t pierce thick layers, causing the fabric to bunch. (See our needle guide for sizing.)

Fix it:

Check dog height: With the machine off, look down the throat plate. The dogs should clear the plate by a fingernail’s width—no more, no less. If they’re flush, adjust the throat plate screw (usually under the bed).
Test with a scrap: Sew a straight line on the same fabric you’re struggling with. If puckering stops, the issue is timing or pressure. If not, the needle is the culprit.

4. Loud Grinding or Scraping

Root cause: Either the dogs’ teeth are worn smooth, or something is jammed between them and the fabric. Lint, thread, or even a bent needle can wedge in.

Fix it:

Clean the area: Turn off the machine, lift the presser foot, and remove any debris from the dogs and throat plate. A soft brush or compressed air works best.
Oil if allowed: Some machines let you oil the dogs (check your manual). Use only the oil specified—never WD-40 or silicone. (See our oiling guide for safe methods.)
Check for bent needles: If grinding persists, the needle may be hitting the dogs. Replace it and test again.

Pro Tip: The Stitch Length Test

If a problem startafter a certain stitch length (e.g., works fine at short stitches but skips at longer ones), the feed dog lever spring is likely weak. Springs lose tension over time—replace it if it doesn’t snap back sharply when pressed.

When to Disable the Feed Dogs (And How)

Feed dogs aren’t always needed. Disable them for:

Free-motion quilting (use a darning foot instead).
Topstitching (a walking foot grips better).
Embroidery (the dogs can snag designs).

How to disable them safely:

Turn off the machine.
Lift the presser foot and remove any press

When to Disable Feed Dogs (And How to Do It Safely)

Photo by Clem Onojeghuo on Unsplash

Feed dogs aren’t just for moving fabric—they can interfere when you need precise control. Disable them for thick fabrics (leather, denim, or layered stacks), freehand embroidery (where dogs restrict movement), or repairing broken stitches (to prevent uneven pulling). The method varies by machine, but the principle is the same: bypass the dogs entirely.

How to Disable Feed Dogs (If Your Machine Allows It)

Most machines have a feed dog lever under the presser foot. Here’s how to use it:

Locate the lever – It’s usually a small metal tab or a sliding bar near the throat plate.
Lift it manually – Some require a tool (a screwdriver or Allen key) to disengage.
Use the handwheel – With the dogs disabled, fabric moves only when you turn the wheel one stitch at a time.

Critical warning: Disabling feed dogs turns off automatic stitch length control. Without them, the machine won’t regulate stitch spacing—you must measure each stitch with a ruler to maintain consistency.

No Disable Option? Workarounds

Not all machines have a feed dog lever. If yours doesn’t, try these alternatives:

Use a walking foot (if your machine has one) – These have a built-in grip that moves fabric without relying on the dogs.
Reduce presser foot pressure – Lowering the foot minimizes drag, but this won’t work for very thick materials.

Why This Matters More Than You Think

Feed dogs don’t just move fabric—they time it. When disabled, the hook and needle still work, but the fabric’s motion becomes manual. This is why:

Thick layers need extra pressure to feed properly—dogs can’t grip them without tearing.
Freehand work requires fluid movement; dogs create resistance that distorts curves.
Stitch repairs pull unevenly if the dogs are active, leading to puckered seams.

Pro tip: If you’re working with a walking foot, check your manual for hook timing adjustments. Some machines need slight tweaks when switching between standard and walking feet to prevent skipped stitches.

Feed Dogs vs. Walking Foot: What’s the Difference?

Feed dogs and walking feet both move fabric—but they do it in fundamentally different ways. Feed dogs are the toothed metal bars under your presser foot that grip fabric and pull it forward in sync with the needle. A walking foot, by contrast, adds a second feed system: a rubberized sole that drags fabric without teeth. The key difference isn’t just the mechanism; it’s how they work together.

When to Use Each

Feed dogs are the default mechanism, designed for most fabrics. But they fail in three scenarios where a walking foot (or alternative) becomes essential:

Fabric layers slip (quilting, heavy knits, layered stacks). Feed dogs can’t grip multiple layers evenly, causing misalignment or puckering. A walking foot’s rubberized sole distributes pressure across the entire stack, preventing drag and maintaining tension.
Feed dogs can’t grip (delicate fabrics like silk, chiffon, or lightweight lace). Teeth dig into fine weaves or stretch knits, creating holes or uneven stitches. A walking foot’s smooth sole glides without marring the fabric.
You need even tension on both layers (e.g., interfacing, appliqué, or topstitching). Feed dogs pull the top layer forward while the bottom layer lags, creating uneven stitches. A walking foot drags both layers simultaneously, keeping them aligned.

The Mechanical Difference: Teeth vs. Drag

Feed dogs rely on interlocking teeth that bite into fabric, moving it in precise increments tied to the needle’s timing. A walking foot, however, uses friction: its rubberized sole grips the fabric’s surface and pulls it forward without teeth. This isn’t a replacement—it’s a supplement. Even with a walking foot installed, the feed dogs still engage during the stitch cycle, ensuring the needle and bobbin threads align correctly.

Symptom of failure: If your walking foot slips but the feed dogs work fine, the issue isn’t the feed dogs—it’s the worn rubber sole on the walking foot. Check for smoothness; if the tread is polished or cracked, it’s lost its grip.

No Walking Foot? Alternatives to Try

Not all machines have a walking foot, but you can still handle tricky fabrics:

Reduce stitch length: Shorter stitches minimize fabric movement between needle penetrations, reducing slippage.
Use a dual-feed foot (common on sergers): These have feed dogs on both sides of the needle, gripping fabric from above and below for even movement.
Disable feed dogs temporarily: For freehand embroidery or thick materials, lift the presser foot and disengage the feed dogs (see When to Disable Feed Dogs) while using the walking foot’s drag alone.

The Trade-Off: Precision vs. Control

Feed dogs excel at precision: their teeth move fabric in exact increments, ideal for straight seams or consistent stitches. Walking feet sacrifice some precision for control, letting you guide fabric by hand—critical for quilting, embroidery, or working with slippery materials. The choice depends on the fabric, not the foot itself.

Pro tip: If you’re quilting or working with multiple layers, a walking foot isn’t just helpful—it’s a necessity. But even then, the feed dogs are still doing their job beneath it, ensuring the stitches form correctly. The two systems work in tandem, not in opposition.

Why Your Machine’s Timing Matters More Than You Think

Photo by Trac Vu on Unsplash

Feed dogs don’t just move fabric—they move it at the right moment. That timing is the hidden choreography between three critical actions:

Needle down – The thread pierces the fabric, forming the first loop.
Feed dogs release – The fabric advances just enough for the next stitch.
Needle up – The new loop forms cleanly, locking the stitch.

When this sequence breaks, the symptom isn’t just “skipped stitches” or “loops on the underside”—it’s a stitch that fails to form at all. The needle pulls the thread through the fabric before the dogs release, leaving a gap. Or the dogs release too early, letting the bobbin thread loop underneath instead of interlocking. Timing isn’t a fine-tuning detail—it’s the difference between a seam that holds and one that unravels.

How to Spot a Timing Problem (Without a Manual)

Most machines don’t come with a timing chart, but you can diagnose it with a scrap of fabric:

Sew a straight line on a plain weave (no stretch, no pucker).
Look at the stitches under bright light—flip the fabric over to check both sides.
Watch for consistency:
- If loops appear only on the underside (bobbin side), the dogs released too early.
- If loops appear only on the top (top thread side), the dogs released too late.
- If loops alternate sides randomly, timing is misaligned (requires a technician).

Pro Tip: Some machines have a timing adjustment screw (usually under the arm). Only use it if you’ve ruled out tension, needle size, or thread type—adjusting blindly can turn a stitching issue into a mechanical failure.

Why This Matters More Than Tension or Needle Type

Tension and needle size are easy to blame, but timing is the root cause when:

Skipped stitches appear only on certain fabrics (thick layers, slippery synthetics).
Loops form on one side but not the other, even with perfect tension.
The machine runs smoothly but stitches still fail—no grinding, no jam.

The trade-off: Most domestic machines don’t let you adjust timing yourself. If your test shows misalignment, the fix isn’t a dial—it’s a service repair. But knowing why it matters means you won’t waste time chasing tension or needle changes when the real issue is hidden in the machine’s guts.

Key Takeaway

Timing isn’t just about when the fabric moves—it’s about when the needle and hook coordinate. A stitch that looks fine on paper can fail in practice if the dogs release a millisecond too soon or too late. Check for consistent loops first; if they’re not matching, timing is the culprit—and the only fix is mechanical.

Frequently Asked Questions

Why does my fabric keep slipping even though the feed dogs are down?

The issue isn’t always the dogs themselves. Check these three mechanics first:

Presser foot pressure – If the foot isn’t pressing hard enough, the dogs can’t grip. Test by sewing a scrap with the foot raised halfway: if the fabric still slips, the dogs are the problem. If it moves, the foot needs adjusting.
Needle type and size – A blunt or oversized needle pushes fabric down instead of piercing it, causing slippage. Switch to a fresh universal point (for woven fabrics) or ballpoint (for knits) one size smaller.
Thread tension – Too tight top tension pulls fabric backward, while loose bobbin tension lets it drag. Test both separately: sew with only the top thread (bobbin empty) and vice versa. If the fabric still slips, the dogs need cleaning or replacement.

Pro tip: If the fabric slips only with thick layers, disable the feed dogs and use a walking foot instead—they’re designed for this.

Can I adjust feed dog height myself?

Yes—but only if your machine has an adjustment screw. Most domestic and vintage machines do, though it’s rarely needed. Here’s how to check:

Locate the screw – It’s usually on the underside of the throat plate, marked or labeled (often near the needle plate).
Test the range – Turn it slightly (a quarter turn max) and sew a scrap. If the fabric drags or the stitches pucker, you’ve gone too far.
Reset to default – Most machines ship with the dogs set for standard woven fabrics. Only lower them for very thin fabrics (like silk) or free-motion quilting (where dogs interfere).

Warning: Over-adjusting can damage the timing mechanism. If unsure, leave it alone—feed dogs are designed to work at one height for most tasks.

What’s the difference between feed dogs and a differential feed?

They both move fabric, but differential feed dogs grip harder on one side than the other, creating stretch or gather effects. Here’s the key difference:

Standard feed dogs pull fabric forward in lockstep—both sides move equally. Use for straight seams, topstitching, or even feeds.
Differential feed dogs have adjustable tension on the left/right sides. Turn the dial to make one side grip harder, and the fabric stretches or gathers as it feeds. This is how you:
- Shrink fabric (e.g., for bias tape or ruffles).
- Create gathers (like in bias-cut dresses).
- Stretch knits without distortion.

Mechanics note: The differential isn’t in the dogs themselves—it’s a separate tensioning system that alters how the dogs engage. Most machines require a special presser foot to access this feature.

How often should I clean/oil my feed dogs?

Clean them every 5–10 hours of use (or after hitting a pin, button, or thick seam). Oil them only when they sound dry or drag—not on a schedule. Here’s how:

Cleaning:
- Lift the throat plate and brush out lint/debris with a **small paintbrush

Final Thoughts: Keep Your Feed Dogs in Check

Feed dogs don’t just fail—they fail in ways that can send you chasing the wrong fix. Start here:

Listen for sounds. A grinding noise means the teeth are worn flat. A rhythmic clicking points to a timing issue where the dogs aren’t syncing with the needle. Watch the fabric. If it slips only under pressure, the dogs aren’t gripping right. If the feed is uneven, the timing is off. Check the basics first. A bent needle, tangled bobbin tension, or a thread path clogged with lint will mimic feed dog failure—rule them out before you adjust anything.

Still stuck? The issue is likely timing or linkage—most home users can’t safely adjust these without a service manual. Take it to a technician with your manual (or a photo of the error), and bring the symptoms you’ve ruled out.

Want to prevent issues? Oil your machine monthly (if it needs it) and clean the feed dogs after heavy fabrics. A buildup of thread or fabric fibers turns the teeth into slippery ridges. Use a small brush or compressed air to clear the grooves—never a blade or wire, or you’ll round the edges.

The single most overlooked step? Disable the feed dogs when you don’t need them. Thick layers, freehand embroidery, or quilting tops—these are the jobs where the dogs get in the way. Learn how to disengage them safely (it’s not just lifting the presser foot), and you’ll avoid a whole class of stitching headaches.

Feed dogs are the unsung heroes of smooth sewing—but only if they’re working with you, not against. Keep them sharp, timed right, and out of the way when they’re not needed, and they’ll last for decades.
